LPA2101A
Filterless 30W Class F Mono Audio Amplifier With AGC function
概述

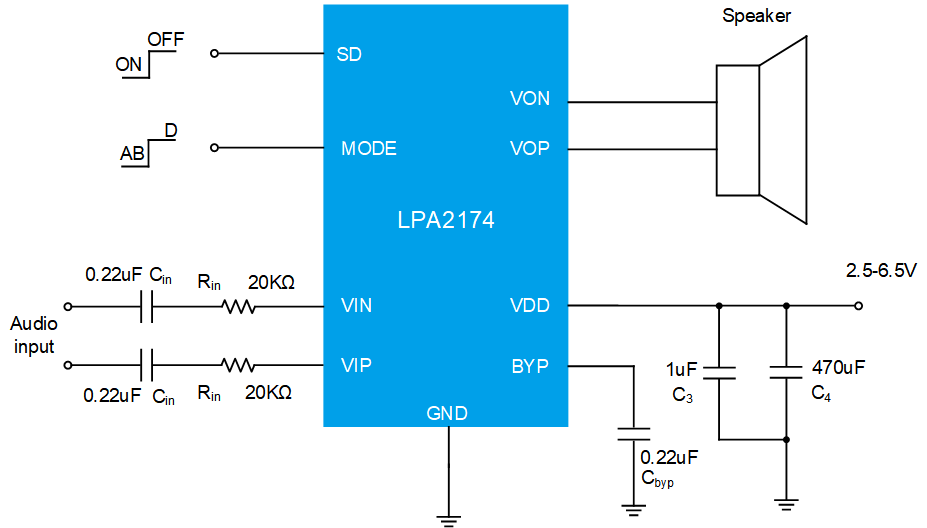

The LPA2174 is a 8W, class-F audio amplifier with a mode pin for switch the work mode. It offers low THD+N, allowing it to achieve high-quality Power Supply sound reproduction. The new filterless architecture allows the device to drive the speaker directly requiring no low-pass output filters, thus to save the system cost and PCB area. The LPA2174 is available in ESOP-8.
应用
◆Portable Bluetooth Speaker
◆Cellular and Smart mobile phone
◆Square Speaker
◆Cellular and Smart mobile phone
◆Square Speaker
数据参数
数据参数
输入电压(V)
2.5~6.5
工作类型
Class AB/D
通道数量
1
电源抑制比(dB)
-75
输出功率
5W,6.2V@4Ω,10%
关断电流(uA)
2
特点
Differential input,Enough output power
封装
ESOP8
特征
特征
◆Shutdown current:◆500KHz fixed frequency switching for amplifier
◆8W Output at 10% THD with a 2Ω Load and 6.0V VDD for amplifier
◆3.4W Output at 10% THD with a 4Ω Load and 5V VDD for amplifier
◆2.7W Output at 1% THD with a 4Ω Load and 5V VDD for amplifier
◆Filterless, Low Quiescent Current and Low EMI
◆Amplifier Efficiency up to 85%
◆Free LC filter digital modulation, direct-drive speakers
◆Short Circuit Protection
◆Thermal Shutdown
◆Few external components to save the space and cost
◆Pb-Free Package
◆8W Output at 10% THD with a 2Ω Load and 6.0V VDD for amplifier
◆3.4W Output at 10% THD with a 4Ω Load and 5V VDD for amplifier
◆2.7W Output at 1% THD with a 4Ω Load and 5V VDD for amplifier
◆Filterless, Low Quiescent Current and Low EMI
◆Amplifier Efficiency up to 85%
◆Free LC filter digital modulation, direct-drive speakers
◆Short Circuit Protection
◆Thermal Shutdown
◆Few external components to save the space and cost
◆Pb-Free Package
