概述

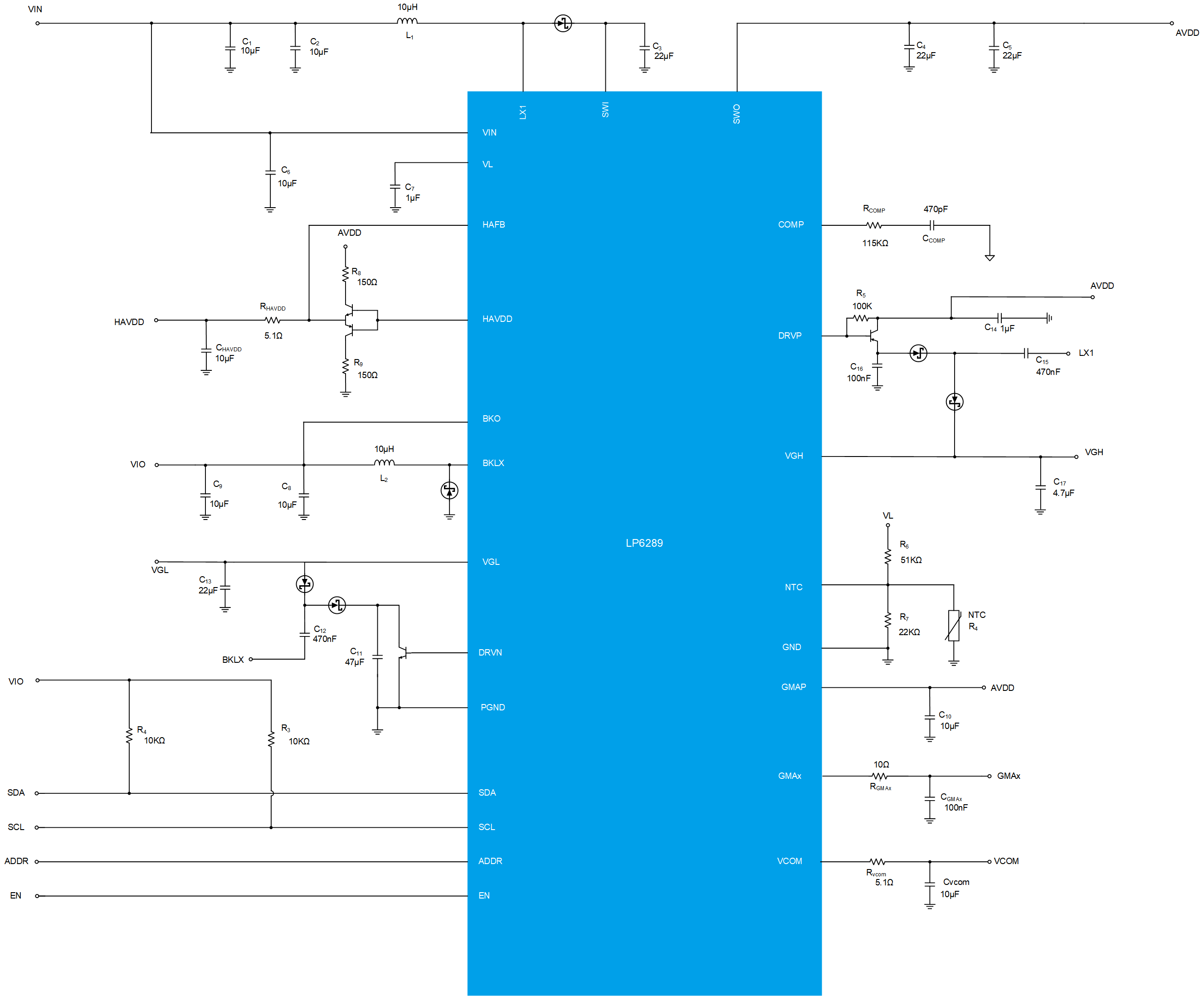

The LP6289 is a multi-channel converter provides regulated voltages and 10ch Gamma Voltage for TFT LCDs. All output can be programmable by IIC.
The VIO buck converter is for the T-CON. The AVDD boost converter, HAVDD OP, VCOM OP and Gamma voltage are for source driver. Charge pump VGH and VGL are for the level shifter or gate driver.
The AVDD have isolation switch included in this IC. VGH rail can be temperature compensated with GIP technology.Other features include over voltage protection(OVP), under voltage protection(UVP), short circuit protection(SCP), over current Protection(OCP), thermal shutdown protection(OTP) and under-voltage lockout (UVLO). The LP6289 is available in a space saving QFN-40 (0.4mm pitch) package.
The VIO buck converter is for the T-CON. The AVDD boost converter, HAVDD OP, VCOM OP and Gamma voltage are for source driver. Charge pump VGH and VGL are for the level shifter or gate driver.
The AVDD have isolation switch included in this IC. VGH rail can be temperature compensated with GIP technology.Other features include over voltage protection(OVP), under voltage protection(UVP), short circuit protection(SCP), over current Protection(OCP), thermal shutdown protection(OTP) and under-voltage lockout (UVLO). The LP6289 is available in a space saving QFN-40 (0.4mm pitch) package.
应用
◆ TFT LCD TV
◆ TFT LCD Monitor
◆ TFT LCD Panel
◆ TFT LCD Monitor
◆ TFT LCD Panel
数据参数
数据参数
输入电压(V)
8.0~14
输出电压(V)
13.5~19.8
工作频率(Hz)
750K
限流值(mA)
5000
效率 (%)
NA
特点
I2C Programmable: AVDD,VGH,VGL,Buck (3.5A), 10CH P-Gamma, HAVDD,VCOM
封装
TQFN-40 (5*5)
特征
特征
◆ Wide VIN Range: 8V to 14V
◆ Current-Mode Boost Regulator
◆ Isolation Switch
◆ 13.5 to 19.8 Programmable Output Voltage
◆ Current Limit Protection
◆ Soft-Start Control
◆ Buck Regulator for VIO
◆ 2.2V to 3.7V Programmable Output
◆ 3A Current Limit Protection
◆ Operation Amplifier for VHAVDD
◆ 10-bits Resolution
◆ ±0.3A Current Limit Protection
◆ Positive Charge Pump for VGH
◆ 20V to 40V Programmable Output
◆ 0V to 15V Gate Shaping Voltage
◆ Temperature Compensation
◆ Negative Charge Pump for VGL
◆ -2.1V to -14.7V Output Voltage
◆ Operation Amplifier for VCOM
◆ 10-bits Resolution
◆ ±0.4A Current Limit Protection
◆ 10-Channel Programmable Gamma Buffers
◆ 10-Bit Resolution
◆ ±75mA Output Short Circuit Current
◆ Under-Voltage Protection
◆ Over-Temperature Protection
◆ IIC Compatible Interface for Register Control
◆ Available in QFN-40 (5mm×5mm)
◆ RoHS Compliant and Halogen Free
◆ Pb-Free Package
◆ Current-Mode Boost Regulator
◆ Isolation Switch
◆ 13.5 to 19.8 Programmable Output Voltage
◆ Current Limit Protection
◆ Soft-Start Control
◆ Buck Regulator for VIO
◆ 2.2V to 3.7V Programmable Output
◆ 3A Current Limit Protection
◆ Operation Amplifier for VHAVDD
◆ 10-bits Resolution
◆ ±0.3A Current Limit Protection
◆ Positive Charge Pump for VGH
◆ 20V to 40V Programmable Output
◆ 0V to 15V Gate Shaping Voltage
◆ Temperature Compensation
◆ Negative Charge Pump for VGL
◆ -2.1V to -14.7V Output Voltage
◆ Operation Amplifier for VCOM
◆ 10-bits Resolution
◆ ±0.4A Current Limit Protection
◆ 10-Channel Programmable Gamma Buffers
◆ 10-Bit Resolution
◆ ±75mA Output Short Circuit Current
◆ Under-Voltage Protection
◆ Over-Temperature Protection
◆ IIC Compatible Interface for Register Control
◆ Available in QFN-40 (5mm×5mm)
◆ RoHS Compliant and Halogen Free
◆ Pb-Free Package
