LP102
USB DCP Control IC
概述
The LP103S is a fast charge protocol controller. The feature monitors USB D+/D- data line's signal, and automatically adjusts output voltage of power source output to optimize charge time. The LP103S was supported USB Battery Charging Specification Revision 1.2(BC1.2), DCP apply the2.7V operation function, Spreadtrum Fast Charge Protocol (SFCP), HiSilicon Fast Charge Protocol, Qualcomm® Quick Charge TM 2.0/3.0 Class A and B. Other features include output over voltage protection, output under voltage protection, temperature sensor detector and under-voltage lockout (UVLO).

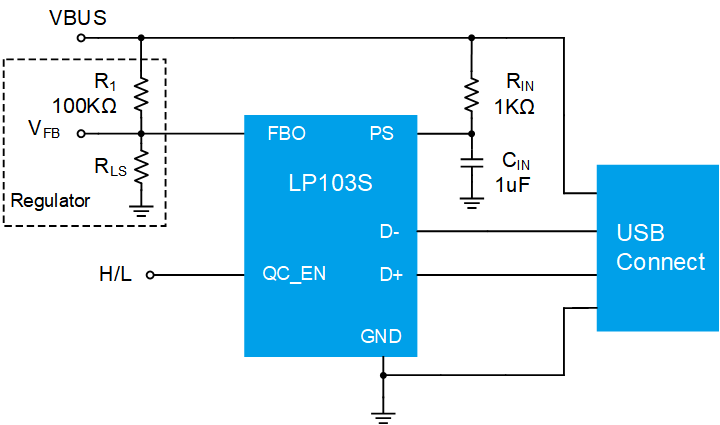

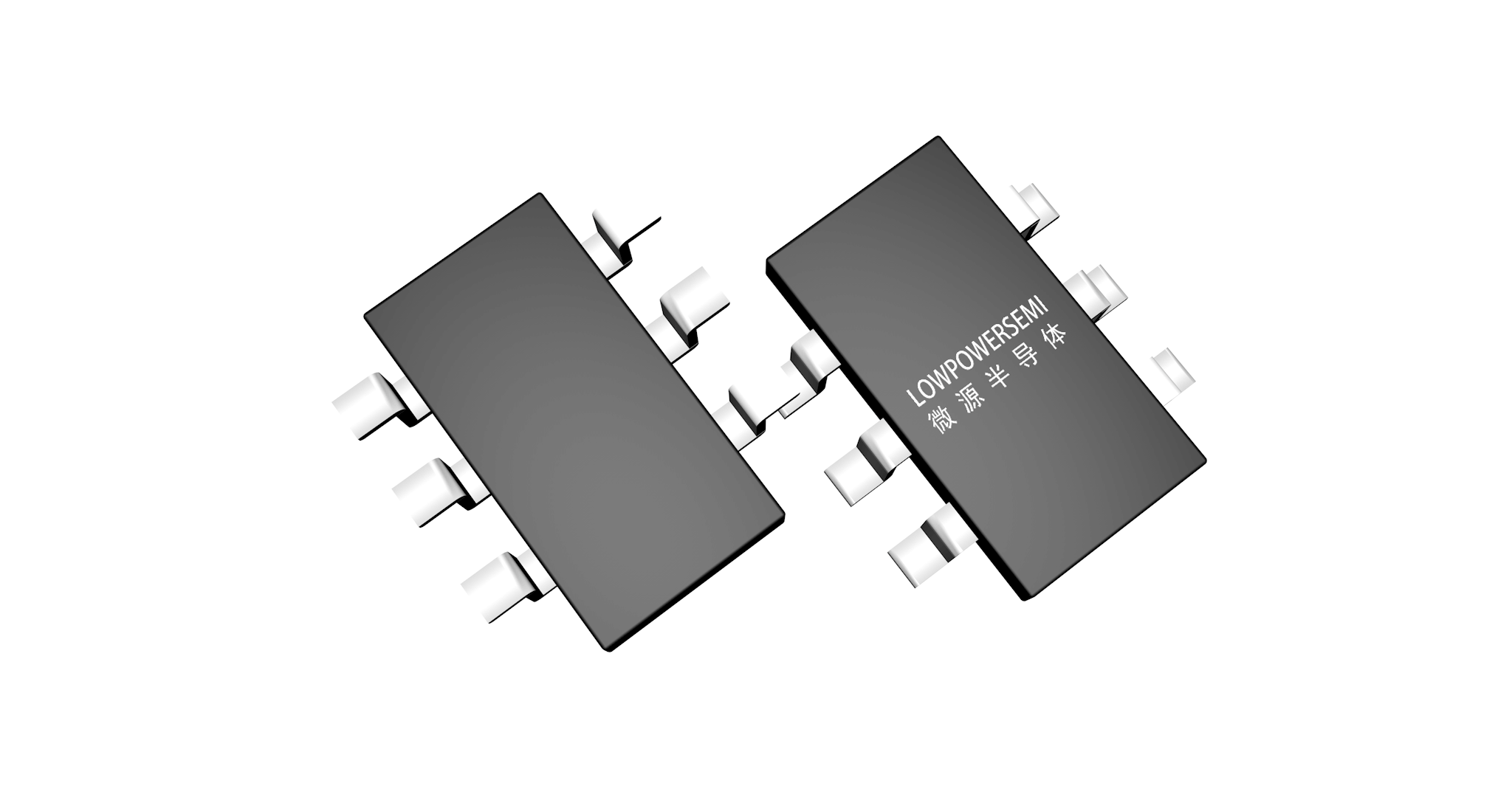

TheLP103S is available in a space saving SOP-8 and SOT23-6 package.
TheLP103S is available in a space saving SOP-8 and SOT23-6 package.
应用
◆ Battery Charge Port
◆ USB Dedicated Charging Port
◆ Wall-Adapter
◆ USB Dedicated Charging Port
◆ Wall-Adapter
数据参数
数据参数
输入电压(V)
3.5~6.3
协议
QC3.0+FCP
输出电压(V)
5/9/12/20
工作模式
BC1.2, QC2.0/3.0, FCP, Apple Mode, SFCP
特点
QC3.0: UL Certification No. 4787974756
封装
SOP8/SOT23-6
特征
特征
◆ Power consumption below 1mW@5 V
◆ Support USB BC1.2
◆ Supports USB DCP 2.7V
◆ Supports QC2.0 Class A and Class B
◆ Supports QC3.0 Class A and Class B
◆ Support HiSilicon FCP Protocol
◆ Support Spreadtrum SFCP Protocol
◆ Support Samsung Mode
◆ Under-Voltage Protection
◆ Output Over-Voltage Protection
◆ Output Short-Circuit Protection
◆ Remote Shutdown Protection
◆ Over-Temperature Protection
◆ UL Certification No. 4787974756
◆ Certificate of Spreadtrum
◆ Available in SOP-8 and SOT23-6
◆ RoHS Compliant and Halogen Free
◆ Support USB BC1.2
◆ Supports USB DCP 2.7V
◆ Supports QC2.0 Class A and Class B
◆ Supports QC3.0 Class A and Class B
◆ Support HiSilicon FCP Protocol
◆ Support Spreadtrum SFCP Protocol
◆ Support Samsung Mode
◆ Under-Voltage Protection
◆ Output Over-Voltage Protection
◆ Output Short-Circuit Protection
◆ Remote Shutdown Protection
◆ Over-Temperature Protection
◆ UL Certification No. 4787974756
◆ Certificate of Spreadtrum
◆ Available in SOP-8 and SOT23-6
◆ RoHS Compliant and Halogen Free
