LP3302
High Performance, Constant Current Switching Regulator For White LED
概述

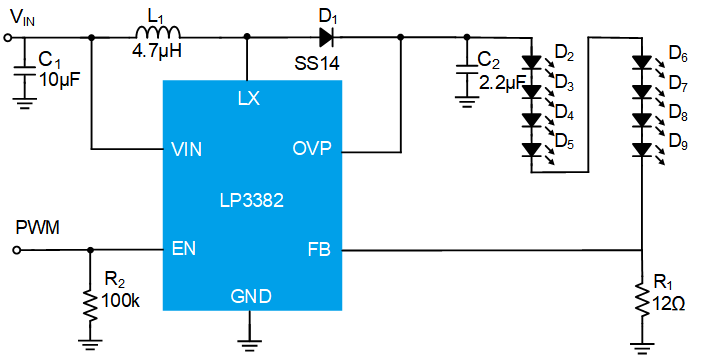

The LP3382 is a 1MHz PWM boost switching regulator designed for constant- current white LED driver applications. The LP3382 can drive a string of up to 8 white LEDs in series, ensuring uniform brightness and eliminating several ballast resistors. The LP3382 implements a constant frequency 1MHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external component sizes. To improve efficiency, the feedback voltage is set to 250 mV, which reduces the power dissipation in the current setting resistor. Highly integration and internal compensation network minimizes as 5 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency.
应用
◆ WLED Backlight driver
◆ OLED Backlight driver
◆ PDA
◆ MID
◆ OLED Backlight driver
◆ PDA
◆ MID
数据参数
数据参数
输入电压 (V)
2.2~5.5
最大输出电压(V)
29
工作模式
Boost
LED通道数
1
驱动LED数量(pcs)
3S16P
开关电流(A)
2
开关频率 (Hz)
1M
FB电压(mV)
250
亮度调节
PWM
过压保护(V)
29
产品特征/功能
OVP,OTP,Constant current,Low size
应用
Backlight
封装
SOT23-6
特征
特征
◆ High Efficiency: 94%
◆ 1MHzFixed-Frequency PWM Operation
◆ Maximum Output Voltage up to 29V
◆ Operating Range : 2.2V to 5.5V
◆ Shutdown Supply Current:◆ Available in SOT23-6 Package
◆ Built-in 29V Over Voltage Protection
◆ Minimize the External Component
◆ RoHS Compliant and 100% Lead (Pb)-Free
◆ 1MHzFixed-Frequency PWM Operation
◆ Maximum Output Voltage up to 29V
◆ Operating Range : 2.2V to 5.5V
◆ Shutdown Supply Current:◆ Available in SOT23-6 Package
◆ Built-in 29V Over Voltage Protection
◆ Minimize the External Component
◆ RoHS Compliant and 100% Lead (Pb)-Free
