LP2206
2×600mA,Dual Channel Ultra-Fast CMOS LDO Regulator
概述

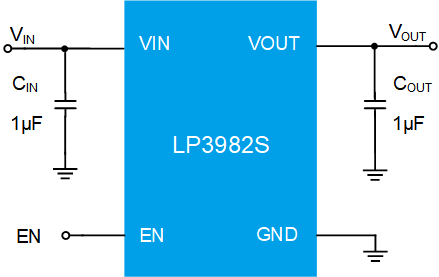

The LP3982S family are high performance low dropout(LDO) voltage regulators with high PSRR, fast transient response, high accuracy, and low output noise. The devices with advanced CMOS process are suitable for many applications that require regulated supplies of up to 300mA load current. The family include standard fixed output voltages of1.2V, 1.8V, 2.8V, and 3.3V. The devices are stable with a 1.0μF~10μF ceramic output capacitor. The devices are protected from short circuit by a current limit function and from over-heating by a thermal overload protection.The devices are available in standard DFN-4(1mmx1mm) and SOT23-5 packages
应用
◆Digital cameras
◆Audio devices
◆Portable and battery-powered equipment
◆Post dc-to-dc regulation
◆Post regulation
◆Wireless handsets
◆Audio devices
◆Portable and battery-powered equipment
◆Post dc-to-dc regulation
◆Post regulation
◆Wireless handsets
数据参数
数据参数
输出电流(mA)
300
输出电压(V)
1.2/1.8/2.8/3/3.3
输入电压(V)
2.2~5.5
电源抑制比(dB)
-70
精度(%)
1
导通压差(mV/mA)
220 @ 300
静态电流(uA)
50
特点
75dB High PSRR 42μV Low Noise LDO
封装
SOT23-5/DFN4(1*1)
特征
特征
◆Wide Input Voltage Range: 2.2V to 5.5V
◆Fixed Output Voltage: 1.2V, 1.8V, 2.8V, 3.3V
◆Maximum Load Current: 300mA
◆High PSRR at Full Frequency Range:
- 75dB@1kHz
- 60dB@10kHz
- 50dB@100kHz
◆Low Noise: 42μVrms, VOUT=2.8V
◆Low Quiescent Current: 58μA typical
◆Low Dropout Voltage:
- 66mV @ 100mA Load, VOUT=2.8V
- 200mV @ 300mA Load, VOUT=2.8V
◆Output Voltage Accuracy: ±1% @ 1mA
◆Short Circuit Current Limit: 110mA
◆Thermal Shutdown Protection
◆Excellent Load/Line Transient Response
◆Line Regulation: 0.01%/V typical
◆Load Regulation: 16mV typical
◆Robust ESD capability:
- Human Body Model: 4kV
- Charged Device Model: 1kV
◆Package: SOT23-5, DFN-4
◆RoHS Compliant and 100% Lead (Pb)-Free
◆Fixed Output Voltage: 1.2V, 1.8V, 2.8V, 3.3V
◆Maximum Load Current: 300mA
◆High PSRR at Full Frequency Range:
- 75dB@1kHz
- 60dB@10kHz
- 50dB@100kHz
◆Low Noise: 42μVrms, VOUT=2.8V
◆Low Quiescent Current: 58μA typical
◆Low Dropout Voltage:
- 66mV @ 100mA Load, VOUT=2.8V
- 200mV @ 300mA Load, VOUT=2.8V
◆Output Voltage Accuracy: ±1% @ 1mA
◆Short Circuit Current Limit: 110mA
◆Thermal Shutdown Protection
◆Excellent Load/Line Transient Response
◆Line Regulation: 0.01%/V typical
◆Load Regulation: 16mV typical
◆Robust ESD capability:
- Human Body Model: 4kV
- Charged Device Model: 1kV
◆Package: SOT23-5, DFN-4
◆RoHS Compliant and 100% Lead (Pb)-Free
