LPA2101A
Filterless 30W Class F Mono Audio Amplifier With AGC function
概述

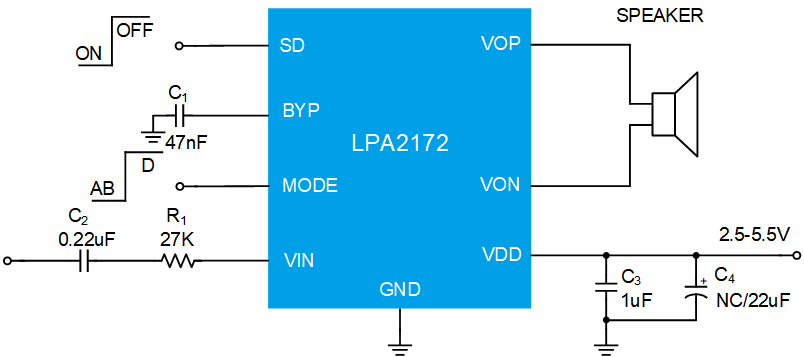

The LPA2172 is a 5.2W, class-F mono audio amplifier integrated Class AB/D optional mode. It is capable of delivering 5.2watts of continuous average power to a 2Ω BTL load with less than 10% distortion (THD) from a 5VDC power supply. It offers low THD+N, allowing it to achieve high-quality Power Supply sound reproduction. The new filterless architecture allows the device to drive the speaker directly requiring no low-pass output filters, thus to save the system cost and PCB area. The LPA2172 is available in ESOP-8.
应用
◆Portable Bluetooth Speaker
◆Cellular and Smart mobile phone
◆Square Speaker
◆Cellular and Smart mobile phone
◆Square Speaker
数据参数
数据参数
输入电压(V)
2.5~5.5
工作类型
Class AB/D
通道数量
1
电源抑制比(dB)
-80
输出功率
5W,5V@2Ω,10%
关断电流(uA)
2
特点
Single ended input,Enough output power,Low noise
封装
SOP8
特征
特征
◆Shutdown current:◆600KHz fixed frequency switching for amplifier
◆5.2W Output at 10% THD with a 2 Ω Load and 5V VDD for amplifier
◆4.2W Output at 1% THD with a 2 Ω Load and 5V VDD for amplifier
◆3.2W Output at 10% THD with a 4 Ω Load and 5V VDD for amplifier
◆Short Circuit Protection
◆Filterless,Low Quiescent Current and Low EMI
◆Amplifier Efficiency up to 90%
◆Free LC filter digital modulation, direct-drive speakers
◆Thermal Shutdown
◆Few External Components to Save the Space and cost
◆Pb-Free Package
◆5.2W Output at 10% THD with a 2 Ω Load and 5V VDD for amplifier
◆4.2W Output at 1% THD with a 2 Ω Load and 5V VDD for amplifier
◆3.2W Output at 10% THD with a 4 Ω Load and 5V VDD for amplifier
◆Short Circuit Protection
◆Filterless,Low Quiescent Current and Low EMI
◆Amplifier Efficiency up to 90%
◆Free LC filter digital modulation, direct-drive speakers
◆Thermal Shutdown
◆Few External Components to Save the Space and cost
◆Pb-Free Package
