LPA2101A
Filterless 30W Class F Mono Audio Amplifier With AGC function
概述

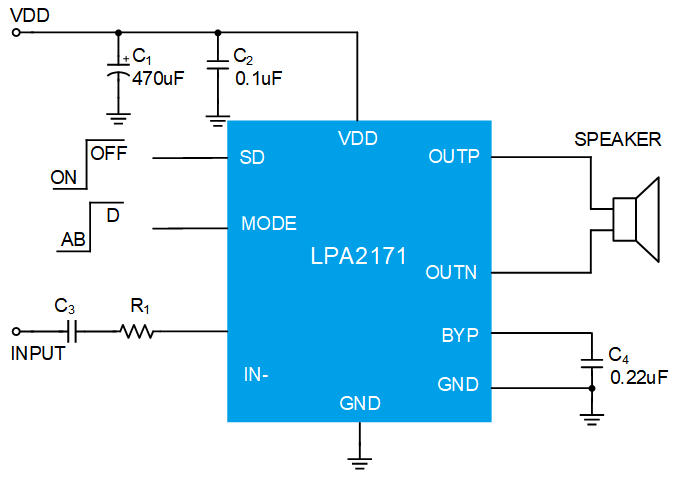

The LPA2171 is a 6W, class-F audio amplifier with a mode pin for switch the work mode. It offers low THD+N, allowing it to achieve high-quality Power Supply sound reproduction. The new filterless architecture allows the device to drive the speaker directly requiring no low-pass output filters, thus to save the system cost and PCB area.The LPA2171 is available in SOP-8.
应用
◆Portable Bluetooth Speaker
◆Cellular and Smart mobile phone
◆Square Speaker
◆Cellular and Smart mobile phone
◆Square Speaker
数据参数
数据参数
输入电压(V)
2.5~6
工作类型
Class AB/D
通道数量
1
电源抑制比(dB)
-75
输出功率
5W,5V@2Ω,10%
关断电流(uA)
2
特点
Single ended input,Enough output power,Low noise

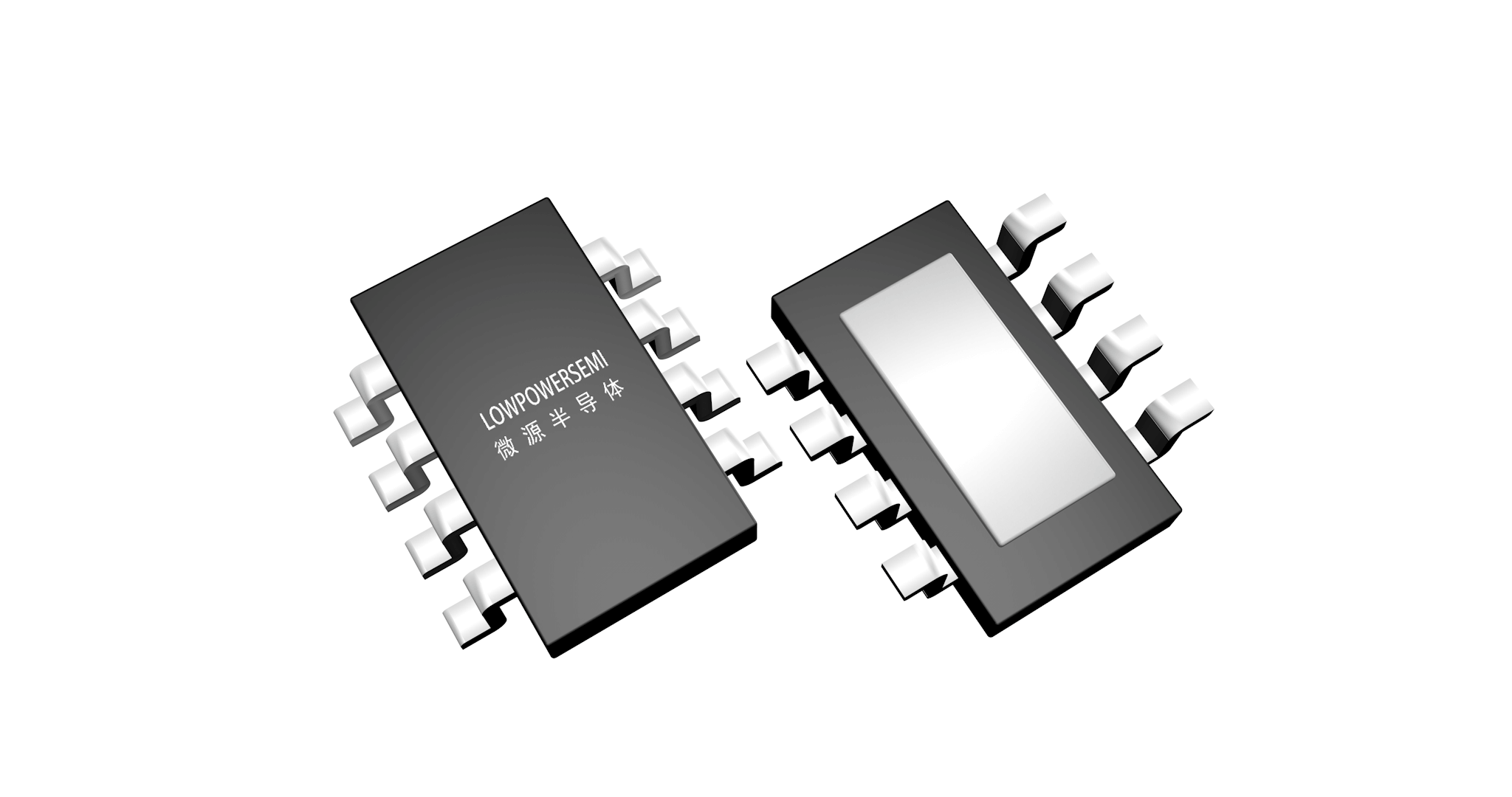

封装
SOP8
特征
特征
◆Shutdown current:◆480KHz fixed frequency switching for amplifier
◆5.6W Output at 10% THD with a 2 Ω Load and 5V VDD for amplifier
◆4.4W Output at 1% THD with a 2 Ω Load and 5V VDD for amplifier
◆4.0W Output at 10% THD with a 4 Ω Load and 5.5V VDD for amplifier
◆Filterless, Low Quiescent Current and Low EMI
◆Amplifier Efficiency up to 85%
◆Free LC filter digital modulation, direct-drive speakers
◆Short Circuit Protection
◆Thermal Shutdown
◆Few External Components to Save the Space and cost
◆Pb-Free Package
◆5.6W Output at 10% THD with a 2 Ω Load and 5V VDD for amplifier
◆4.4W Output at 1% THD with a 2 Ω Load and 5V VDD for amplifier
◆4.0W Output at 10% THD with a 4 Ω Load and 5.5V VDD for amplifier
◆Filterless, Low Quiescent Current and Low EMI
◆Amplifier Efficiency up to 85%
◆Free LC filter digital modulation, direct-drive speakers
◆Short Circuit Protection
◆Thermal Shutdown
◆Few External Components to Save the Space and cost
◆Pb-Free Package
