LP3302
High Performance, Constant Current Switching Regulator For White LED
概述

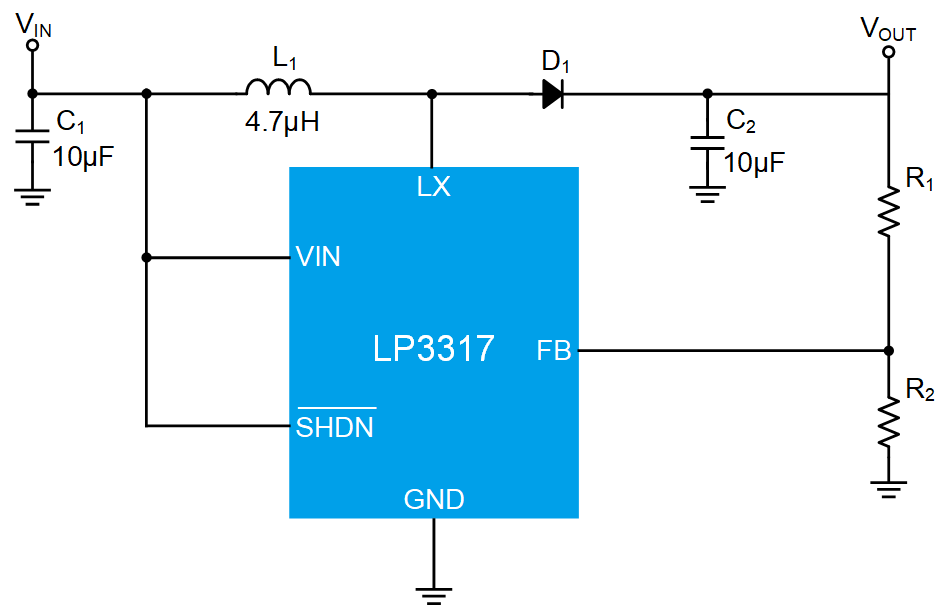

The LP3317 is a current mode boost DC-DC converter. Its PWM circuitry with built-in 1.5A current power MOSFET makes this converter highly power efficiently.The LP3317 implements a constant frequency 1MHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external component sizes. The LP3317 features automatic shifting to pulse frequency modulation mode at light loads.Highly integration and internal compensation network minimizes as 6 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. The LP3317 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The LP3317 is available in a small 5-pin SOT23-5package.
应用
◆ Panel Bais Voltage supply
◆ OLED Backlight driver
◆ Notebook Computers
◆ Portable Applications
◆ MID
◆ OLED Backlight driver
◆ Notebook Computers
◆ Portable Applications
◆ MID
数据参数
数据参数
输入电压 (V)
2.2~5.5
最大输出电压(V)
30
工作模式
Boost
LED通道数
-
驱动LED数量(pcs)
-
开关电流(A)
1.5
开关频率 (Hz)
1.2M
FB电压(mV)
1230
亮度调节
PWM
过压保护(V)
-
产品特征/功能
Low size,Small EMI
应用
Bias
封装

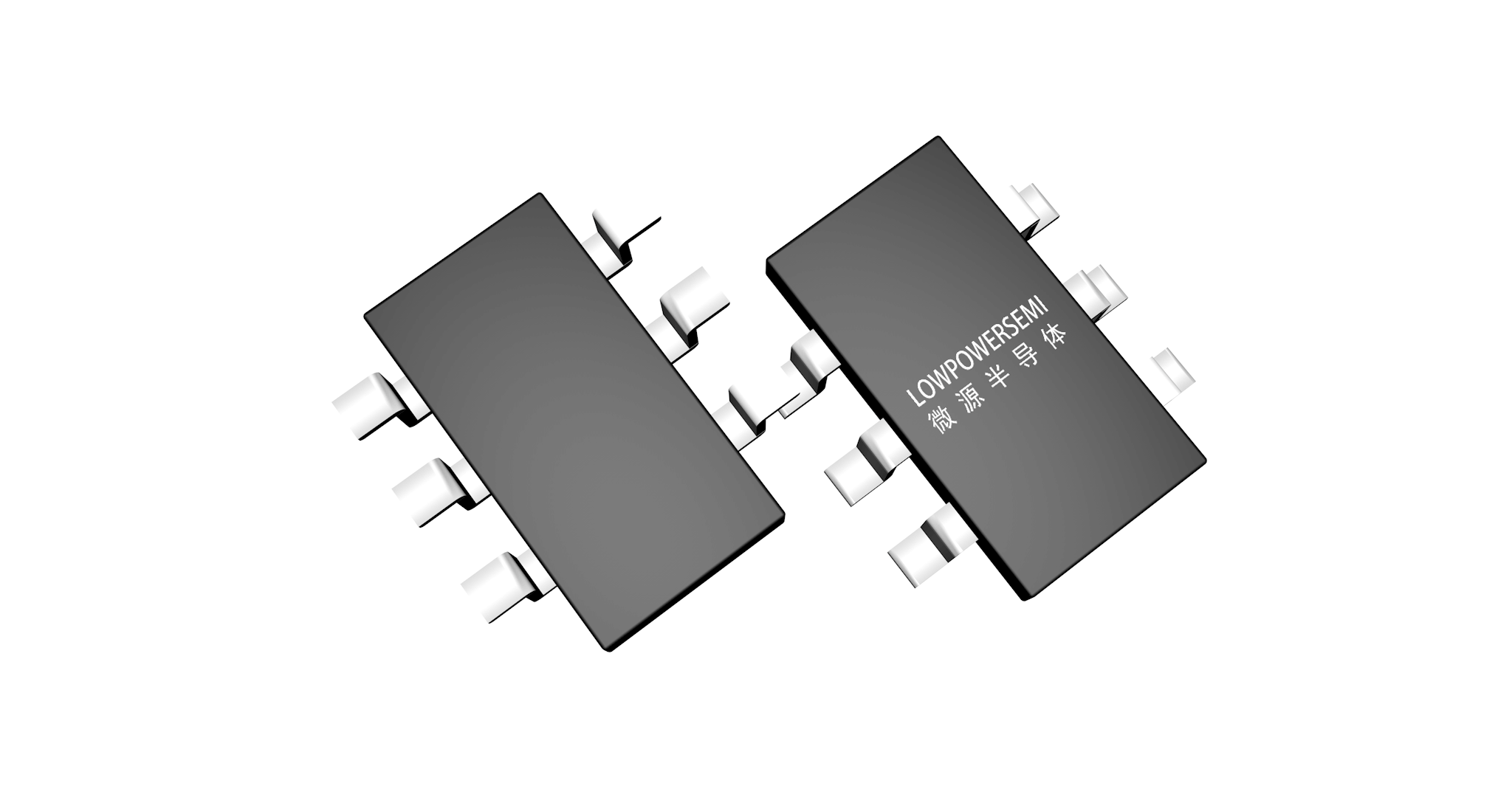

SOT23-5
特征
特征
◆ High Efficiency: 90%
◆ 1MHzFixed-Frequency PWM Operation
◆ Maximum Output Voltage up to 30V
◆ Guaranteed 13V/200mA Output with 5V input
◆ Operating Range : 2.2V to 5.5V
◆ Shutdown Supply Current:◆ Available in SOT23-5 Package
◆ Minimize the External Component
◆ RoHS Compliant and 100% Lead (Pb)-Free
◆ 1MHzFixed-Frequency PWM Operation
◆ Maximum Output Voltage up to 30V
◆ Guaranteed 13V/200mA Output with 5V input
◆ Operating Range : 2.2V to 5.5V
◆ Shutdown Supply Current:◆ Available in SOT23-5 Package
◆ Minimize the External Component
◆ RoHS Compliant and 100% Lead (Pb)-Free
