LP6295
14-Channel Level Shifter for LCD TV
概述
The LP6297B is a 10-CH high voltage level shifter for TV and monitor LCD applications. It converts logic level signals from Timing Controller (T-CON) to high level signals used by the LCD panel. The outputs are switching from VGL to VGH, with capacitive loads up to 5nF. Other features include thermal shutdown protection and under-voltage lockout (UVLO).The LP6297B is available in QFN-32 (0.4mm pitch) package.

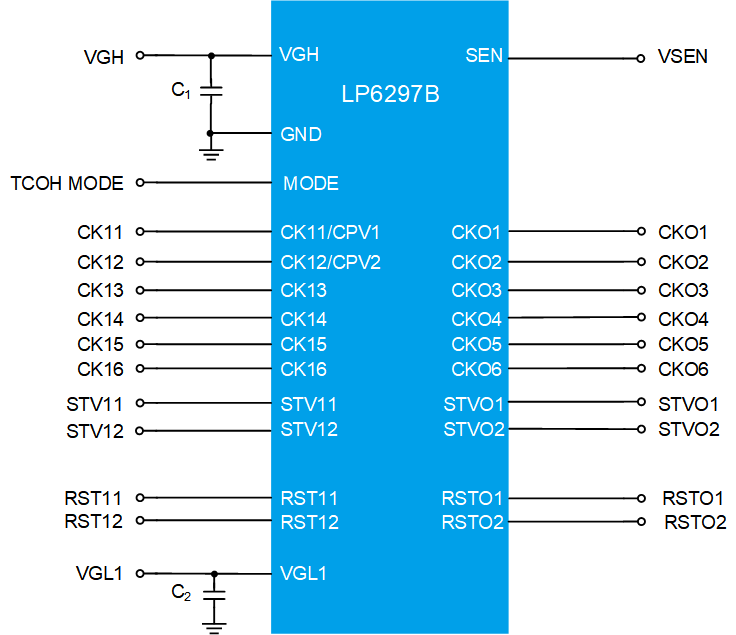

应用
◆ TFT for NB Using GOP/IPS Technology
◆ TFT for Monitors Using GOP/IPS Technology
◆ TFT for TV Using GOP/IPS Technology
◆ TFT for Monitors Using GOP/IPS Technology
◆ TFT for TV Using GOP/IPS Technology
数据参数
数据参数
输入电压(V)
-20~40
通道数(CH)
10
CLK通道
6
高电平电压(V)
40
低电平电压(V)
-20
输出阻抗(Ω)
11
工作频率(Hz)
500K
特点
TCON MODE Select 1-to-1 or 2-to-6 input/output control
封装
TQFN-32 (4*4)
特征
特征
◆ -20V to 40V High Output Level
◆ Support Two Kinds of TCON Input Signals
TCON Mode 0
TCON Mode 1
◆ High Output Slew Rate to Drive Up to 5nF Load
◆ Over Temperature Protection
◆ Available in QFN-32 (4×4mm)
◆ RoHS Compliant and Halogen Free
◆ Pb-Free Package
◆ Support Two Kinds of TCON Input Signals
TCON Mode 0
TCON Mode 1
◆ High Output Slew Rate to Drive Up to 5nF Load
◆ Over Temperature Protection
◆ Available in QFN-32 (4×4mm)
◆ RoHS Compliant and Halogen Free
◆ Pb-Free Package
