LP6294

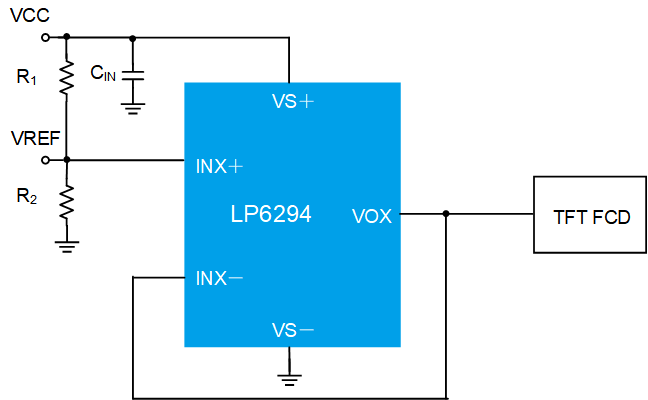

The LP6294 is a rail-to-rail quad channels operational amplifier with wide supply range from 4.5V to 18V. It provides 0.5V beyond the supply rails of common mode input range and capability of rail-to-rail output swing as well. This enables the amplifier to offer maximum dynamic range at any supply voltage among many applications. A 20MHz gain bandwidth product allows LP6294 to perform more stable. With features of 40V/μs high slew rate, as well as 100mA (sink and source) of high output driving capability, the LP6294 is ideal for the requirements of flat panel Thin Film Transistor Liquid Crystal Displays (TFT-LCD) panel reference buffers application. With standard operational amplifier pin assignment, the LP6294 is offered in space saving 14-Pin TSSOPpackage and specified over the -40°C to +85°C temperature range.
