LPM3401A
15V/4A P-Channel Enhancement Mode Field Effect Transistor
概述
The LPM9015 uses advanced trench technology to provide excellent RDS(ON), This device is suitable for use as a load switch or in PWM applications.
应用
◆ PWM applications
◆ Load switch
◆ Power management
◆ Load switch
◆ Power management
数据参数
数据参数
封装
SOT23-3
DS电压最大值(V)
20
GS电压最大值(V)
±8
DS漏电流(uA)
1
输出电流(A)
5
导通内阻(mΩ)
30
特征
特征
◆ -20V/-2.0A, RDS(ON)=28mΩ(typ.)@VGS=-4.5V
◆ -20V/-2.0A, RDS(ON)=38mΩ(typ.)@VGS=-2.5V
◆ Super high density cell design for extremely low RDS(ON)

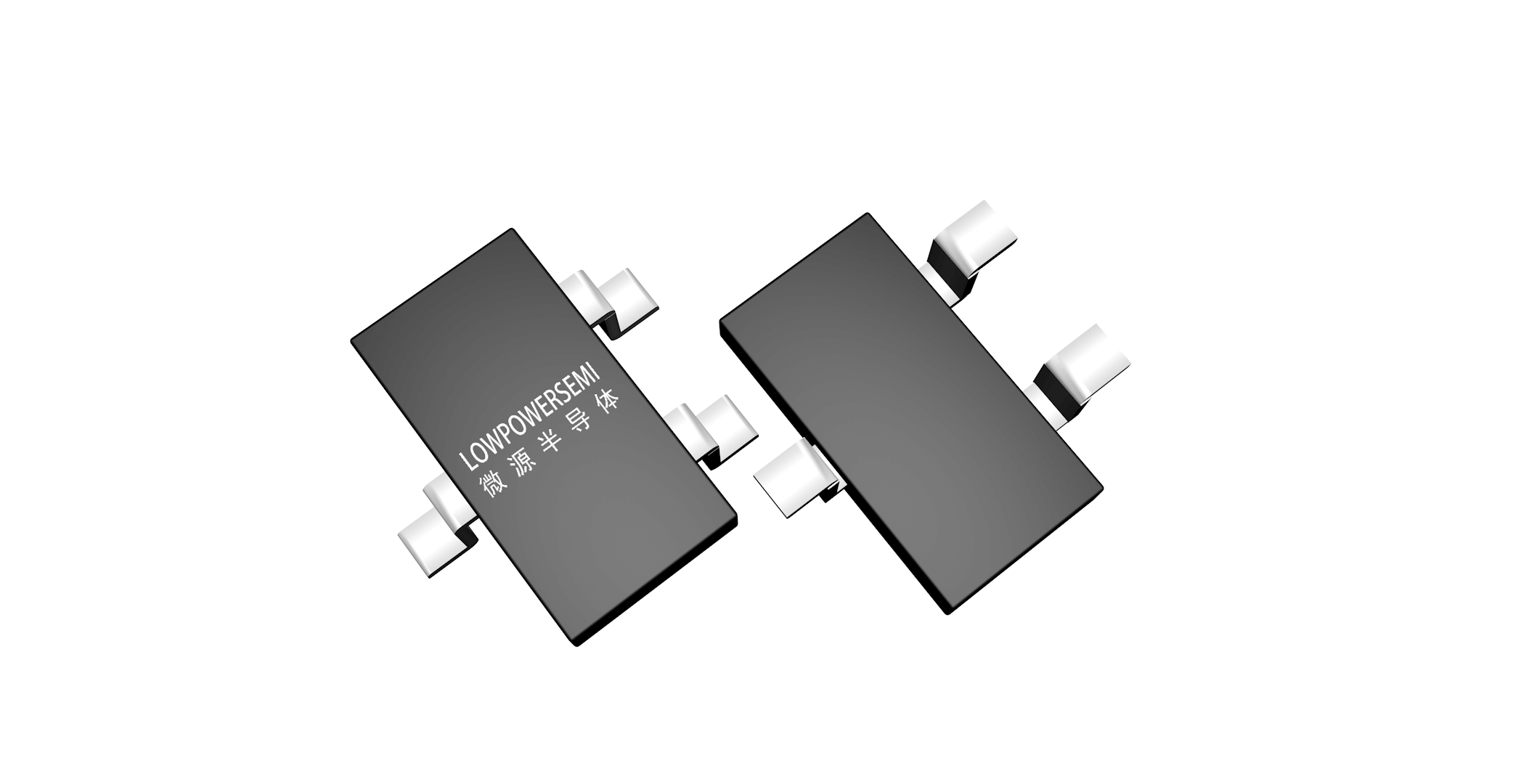

◆ SOT23 Package
◆ -20V/-2.0A, RDS(ON)=38mΩ(typ.)@VGS=-2.5V
◆ Super high density cell design for extremely low RDS(ON)
◆ SOT23 Package
