LP2206
2×600mA,Dual Channel Ultra-Fast CMOS LDO Regulator
概述
The LP3992 is designed for portable RF and wireless applications with demanding performance and space requirements. The LP3992 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. The LP3992 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The LP3992 consumes less than 0.1µA in shutdown mode and has fast turn-on time less than 50µs. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. It is available in the 5-lead of SOT23-5 and TSOT23-5 packages.

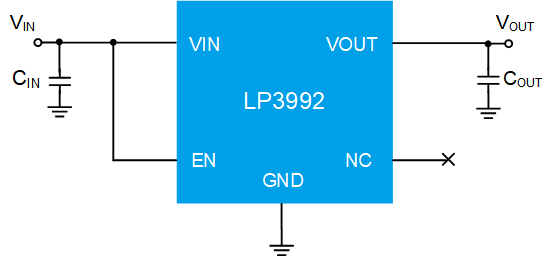

应用
◆Portable Media Players/MP3 players
◆Cellular and Smart mobile phone
◆LCD
◆DSC Sensor
◆Wireless Card
◆Cellular and Smart mobile phone
◆LCD
◆DSC Sensor
◆Wireless Card
数据参数
数据参数
输出电流(mA)
300
输出电压(V)
1.2/1.5/1.8/2.5/2.8/3/3.3
输入电压(V)
2.0-6.0
电源抑制比(dB)
-70
精度(%)
2
导通压差(mV/mA)
220 @ 300
静态电流(uA)
75
特点
Shutdown,High PSRR
封装
SOT23-5
特征
特征
◆Ultra-Low-Noise for RF Application
◆2.5V- 5.5V Input Voltage Range
◆Low Dropout : 220mV @ 300mA
◆1.2V, 1.5V, 1.8V, 2.5V, 2.8V,3.0V,3.3V, 3.6V and 5V Fixed
◆300mA Output Current
◆High PSRR:-76dB at 1KHz
◆◆Available in SOT23-5、SOT23 and TSOT23-5Package
◆TTL-Logic-Controlled Shutdown Input
◆Ultra-Fast Response in Line/Load transient
◆Current Limiting and Thermal Shutdown Protection
◆Quick start-up (typically 50uS)
◆2.5V- 5.5V Input Voltage Range
◆Low Dropout : 220mV @ 300mA
◆1.2V, 1.5V, 1.8V, 2.5V, 2.8V,3.0V,3.3V, 3.6V and 5V Fixed
◆300mA Output Current
◆High PSRR:-76dB at 1KHz
◆◆Available in SOT23-5、SOT23 and TSOT23-5Package
◆TTL-Logic-Controlled Shutdown Input
◆Ultra-Fast Response in Line/Load transient
◆Current Limiting and Thermal Shutdown Protection
◆Quick start-up (typically 50uS)
