LP2206
2×600mA,Dual Channel Ultra-Fast CMOS LDO Regulator
概述

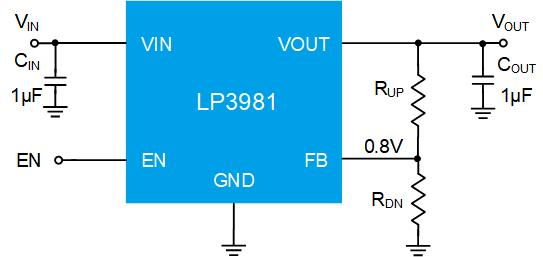

The LP3981 series low-dropout, low-power regulators offer a fast start-up and excellent line and load transient responses. A low ground current while at no load with chips enabled makes the devices attractive for battery-operate power systems. The LP3981 series also provides an active pull-down circuit to quickly discharge output load. Other features include short current limit, thermal protection and a low current consume shut-down mode.The LP3981 is available in SOT23-5 / SOT23 / DFN-4(1mm*1mm) / DFN-6(2mm*2mm) packages.
应用
◆Portable Media Players/MP3 players
◆Cellular and Smart mobile phone
◆LCD
◆DSC Sensor
◆Wireless Card
◆Cellular and Smart mobile phone
◆LCD
◆DSC Sensor
◆Wireless Card
数据参数
数据参数
输出电流(mA)
300
输出电压(V)
1.2/1.5/1.8/2.5/2.8/3.0/3.3/Adj.
输入电压(V)
2~6.5
电源抑制比(dB)
-76
精度(%)
2
导通压差(mV/mA)
220 @ 300
静态电流(uA)
45
特点
Shutdown,High PSRR
封装
SOT23-5/DFN4(1*1)/DFN-6(2*2)
特征
特征
◆2.5V~5.5V Input Voltage Range
◆Low Dropout: 260mV @ 300mA
◆300mA Output Current, 500mA Peak Current
◆High PSRR: -63dB at 1KHz
◆◆TTL-Logic-Controlled Shutdown Input
◆Ultra-Fast Response in Line/Load transient
◆Current Limit and Thermal Shutdown Protection
◆Low Dropout: 260mV @ 300mA
◆300mA Output Current, 500mA Peak Current
◆High PSRR: -63dB at 1KHz
◆◆TTL-Logic-Controlled Shutdown Input
◆Ultra-Fast Response in Line/Load transient
◆Current Limit and Thermal Shutdown Protection
