LP3980/H
500mA,Ultra-low noise, Small Package Ultra-Fast CMOS LDO Regulator
概述

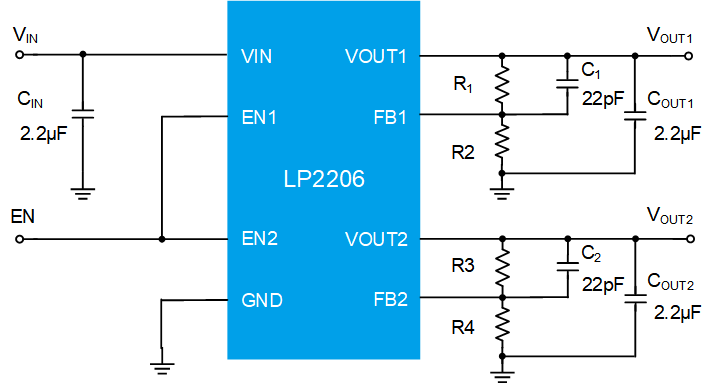

The LP2206 is a dual channel, low noise, and low dropout regulator sourcing up to 600mA at each channel. The range of output voltage is from 0.81V to Vin by operating from 2.5V to 5.5V input. LP2206 offers 2% accuracy, extremely low dropout voltage (280mV @ 400mA), and extremely low ground current, only 75μA per LDO. The shutdown current is near zero current which is suitable for battery-power devices. Other features include current limiting, over temperature, output short circuit protection. LP2206 can operate stably with very small ceramic output capacitors, reducing required board space and component cost. LP2206 is available in fixed output voltages in the TDFN-8(2*2mm) and ESOP8 package.
应用
◆CDMA/GSM Cellular Handsets
◆Smart mobile phone
◆Battery-Powered Equipment
◆DSC Sensor
◆Wireless Card
◆Smart mobile phone
◆Battery-Powered Equipment
◆DSC Sensor
◆Wireless Card
数据参数
数据参数
输出电流(mA)
600/600
输出电压(V)
Adj/Adj
输入电压(V)
2.5~6
电源抑制比(dB)
-68
精度(%)
2
导通压差(mV/mA)
280 @ 400
静态电流(uA)
75
特点
Shutdown,High PSRR
封装
ESOP8/DFN-8(2*2)
特征
特征
◆Wide Operating Voltage Ranges : 2.5V to 6.0V
◆Low-Noise for RF Applications
◆High PSRR: -68dB at 1kHz
◆No Noise Bypass Capacitor Required
◆Fast Response in Line/Load Transient
◆TTL-Logic-Controlled Shutdown Input
◆Dual LDO Outputs (280mV/400mA)
◆High Output Accuracy 2%
◆Ultra-low Quiescent Current 75uA
◆Thermal Shutdown Protection
◆RoHS Compliant and 100% Lead (Pb)-Free
◆Low-Noise for RF Applications
◆High PSRR: -68dB at 1kHz
◆No Noise Bypass Capacitor Required
◆Fast Response in Line/Load Transient
◆TTL-Logic-Controlled Shutdown Input
◆Dual LDO Outputs (280mV/400mA)
◆High Output Accuracy 2%
◆Ultra-low Quiescent Current 75uA
◆Thermal Shutdown Protection
◆RoHS Compliant and 100% Lead (Pb)-Free
