LP3219
1.5MHz, 2A Step-Down Converter
概述
The LP6304B is a 2A buck converter of 4-CH power management IC for applications powered by one Li-Ion battery or a DC 5V adapter. It integrates four synchronous buck converters and can provide high efficiency output at light load and heavy load operation. The internal compensation architecture simplifies the application circuit design. Besides, the independent enable control makes the designer have the greatest flexibility to optimize timing for power sequencing purposes. The LP6304B is available in a 24 pin TQFN 4x4 package.

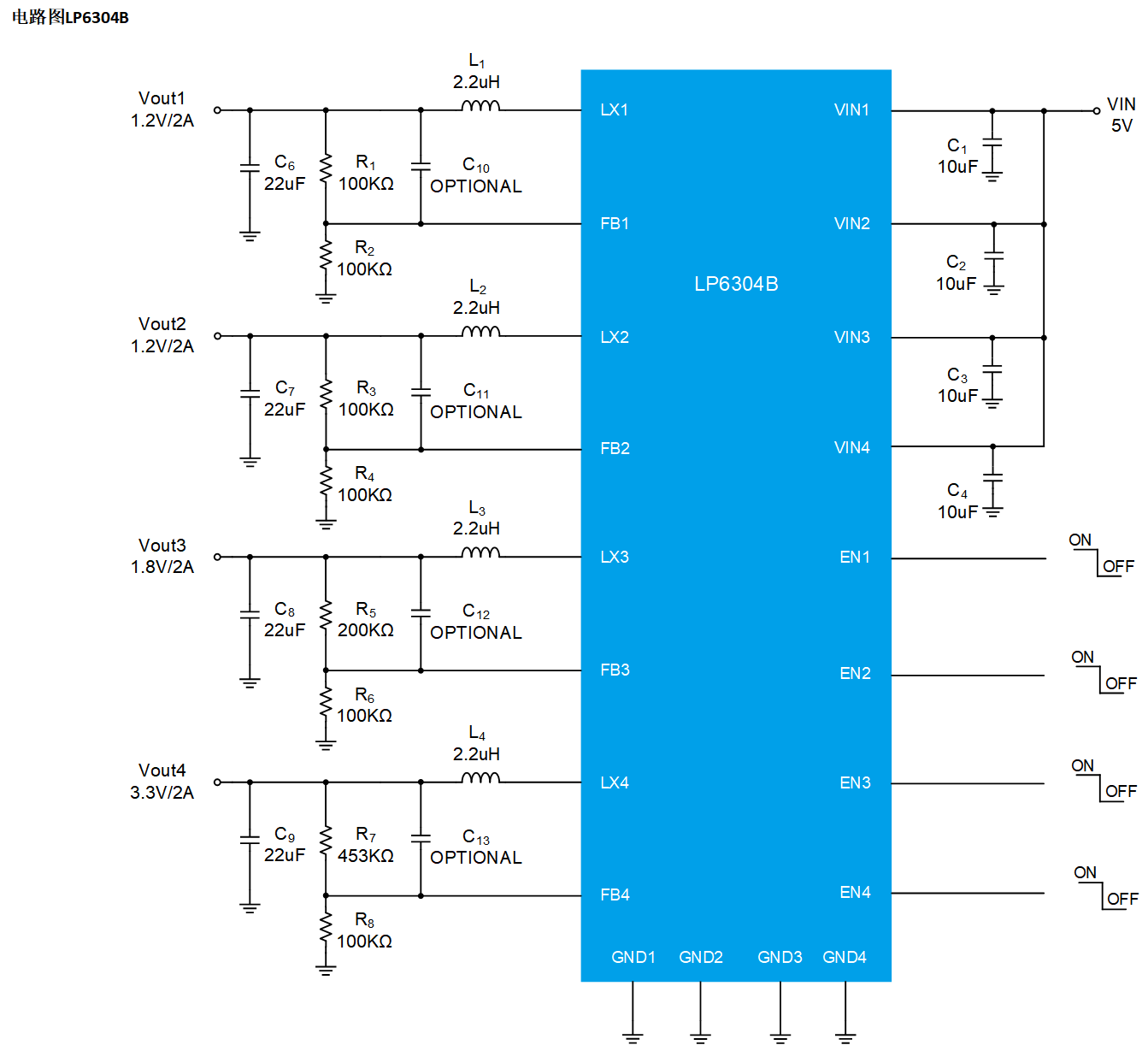

应用
◆ Smart Phone
◆ IP Camera
◆ OTT
◆ Digital Camera
◆ IP Camera
◆ OTT
◆ Digital Camera
数据参数
数据参数
输入电压(V)
2.5~5.5
输出电压(V)
0.6~5.5
FB电压（V）
0.6
电压精度
±2%
工作频率(Hz)
1.5M
最大输出电流(A)
2
输出通道数量
4
工作模式
Syn.
EN控制
Y
轻负载模式
PFM/PWM
产品特征/功能
100% Duty,Internal Soft Start,OCP,SCP,OTP
封装
TQFN-24(4*4)
特征
特征
◆ 2.2V to 5.5V Input Voltage Range
◆ Four Buck Converters
◆ Output Voltage Range: 0.6V to Vin
◆ Continuous Loading: 2A (Buck1), 2A (Buck2), 2A (Buck3), 2A (Buck4)
◆ Fixed 1.5MHz Switching Frequency
◆ 100% Duty Cycle Low Dropout Operation
◆ ◆ Independent Enable Control
◆ Internal Compensation
◆ Cycle-by-Cycle Current Limit
◆ Short Circuit Protection
◆ Auto Recovery OTP Protection
◆ Available in 24-pin 4mm x 4mm QFN Package
◆ Four Buck Converters
◆ Output Voltage Range: 0.6V to Vin
◆ Continuous Loading: 2A (Buck1), 2A (Buck2), 2A (Buck3), 2A (Buck4)
◆ Fixed 1.5MHz Switching Frequency
◆ 100% Duty Cycle Low Dropout Operation
◆ ◆ Independent Enable Control
◆ Internal Compensation
◆ Cycle-by-Cycle Current Limit
◆ Short Circuit Protection
◆ Auto Recovery OTP Protection
◆ Available in 24-pin 4mm x 4mm QFN Package
