LP4052
400mA固定电流线性锂电池充电芯片
概述

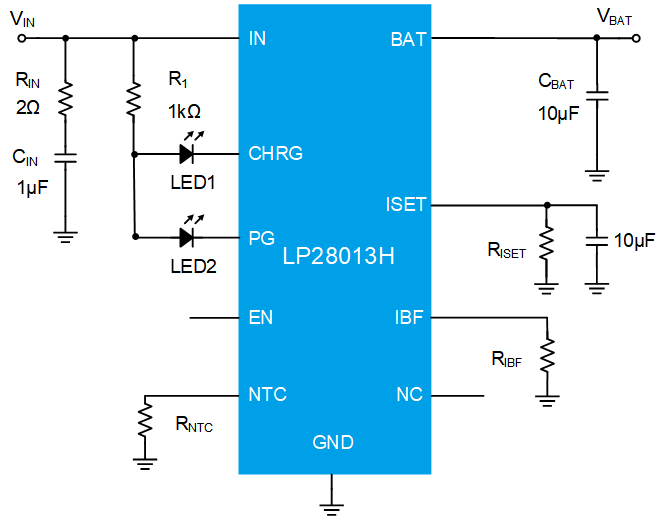

The LP28013H is a complete constant-current/ constant voltage linear charger for single cell lithium-ion battery. Its DFN-10 package and low external component count make the LP28013H ideally suited for portable applications.
The charge current and termination current could program by external resistors. While the battery voltage is lower than 2.6V, the charge current is typically 10% of the programmed charge current. During the constant voltage phases, if the charge current reduces to the termination current level, the device will disable the internal power MOS and CHRGgoes high impedance, which signals the charge cycle is termination.
When the input supply is removed, the LP28013H automatically enters a low current state, dropping the battery drain current to less than
The charge current and termination current could program by external resistors. While the battery voltage is lower than 2.6V, the charge current is typically 10% of the programmed charge current. During the constant voltage phases, if the charge current reduces to the termination current level, the device will disable the internal power MOS and CHRGgoes high impedance, which signals the charge cycle is termination.
When the input supply is removed, the LP28013H automatically enters a low current state, dropping the battery drain current to less than
应用
◆ Portable Media Players/Game
◆ Power Bank
◆ Bluetooth Applications
◆ PDA/MID
◆ Power Bank
◆ Bluetooth Applications
◆ PDA/MID
数据参数
数据参数
最大充电电流(mA)
1000
工作电压(V)
4.5~36
过压保护
6.3
电池电压(V)
4.2/4.35/4.4
温度检测
Y
使能控制
Y
充满指示
-
充电状态指示
Y
电源状态指示
Y
电池节数
1
产品特征/功能
CTC,OTP,Reverse Protection,Full voltage±1%Accuracy
封装
DFN-10 (3*3)
特征
特征
◆ Input voltage up to 36V
◆ Input Over Voltage Protection：6.3V
◆ Short-circuit protection
◆ Programmable Charge Current up to 1A
◆ ◆ Protection of Reverse Connection of Battery
◆ No MOSFET, Sense Resistor or Blocking Diode Required
◆ Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
◆ DFN-10 Package
◆ RoHS Compliant and 100% Lead (Pb)-Free
◆ Input Over Voltage Protection：6.3V
◆ Short-circuit protection
◆ Programmable Charge Current up to 1A
◆ ◆ Protection of Reverse Connection of Battery
◆ No MOSFET, Sense Resistor or Blocking Diode Required
◆ Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
◆ DFN-10 Package
◆ RoHS Compliant and 100% Lead (Pb)-Free
